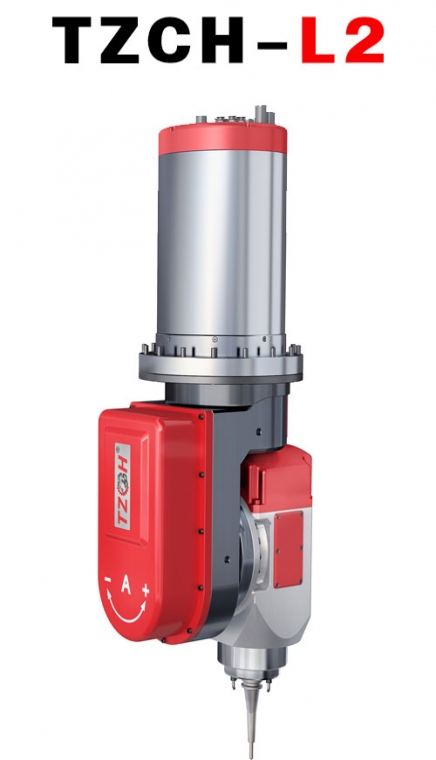

Double pendulum five axis head TZCH-L2
Application scope
Rail vehicles are used for aerospace parts processing
Mould design
Design modeling
Processing materials
Surface treatment of titanium, steel and castings
Processing of aluminum, zamack, carbon fiber and composite materials
Plastic, wood
Mini five axis double swing head tzch-l1 product parameters:
|
TZCH-L2技术参数
|
|||
|
1
|
C axis swivel range / Speed
|
±360°
|
220°/S
|
|
2
|
A axis swivel range / Speed
|
±125°
|
220°/S
|
|
3
|
A axis shaft continuous output torque
|
|
420nm
|
|
4
|
A轴紧急制动扭矩
|
|
1100nm
|
|
5
|
C轴持续输出扭矩
|
|
420nm
|
|
6
|
C轴紧急制动扭矩
|
|
1100nm
|
|
7
|
A/C轴伺服电机-日本安川
|
违禁词值
|
1.5KW/1KW
|
|
8
|
A/C重复性定位精度
|
|
±6°
|
|
9
|
A/C联动加工精度
|
|
0.6弧分
|
|
10
|

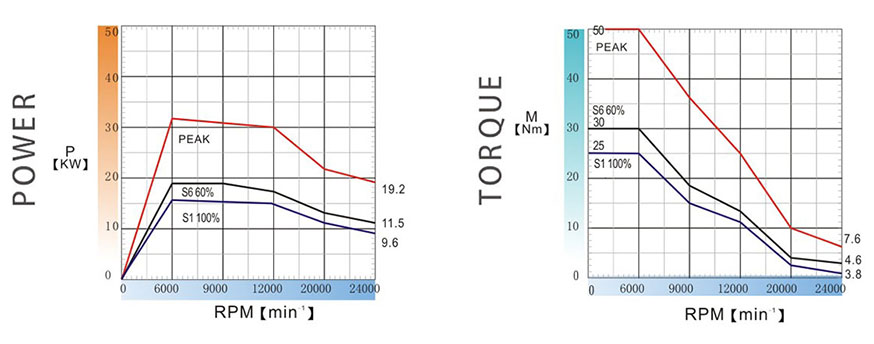

摆动电主轴/转速/扭矩
|
|
20000rpm/25nm
|
|
11
|
摆动电主轴/功率
|
|
15KW
|
|
12
|
刀柄
|
HSK-A63/HSK-F63
|
异步电机
|
|
13
|
打刀方式
|
|
液压/60Pa
|
|
14
|
重量
|
|
275KG
|
